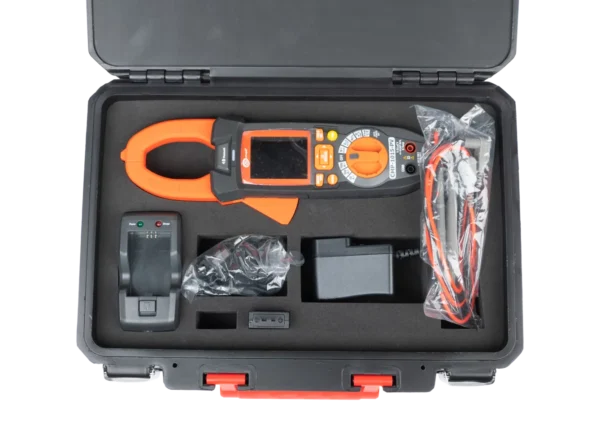

Clamp meter CMP-1015-PV

The CMP-1015-PV device is dedicated to measure DC current and voltage in photovoltaic installations. The device is versatile due to many measurement options. In addition to the basic measurements, the instrument has a recorder with graphs. Working in full sun is not difficult thanks to the high-brightness display.

Index: WMGBCMP1015PV

5230,00 kr

Add to Quote

Description

Photovoltaics under close control

The CMP-1015-PV device is dedicated to measure DC current and voltage in photovoltaic installations with voltages of 1500 V. The meter also provides precise measurements downstream of frequency converters thanks to the VFD function.

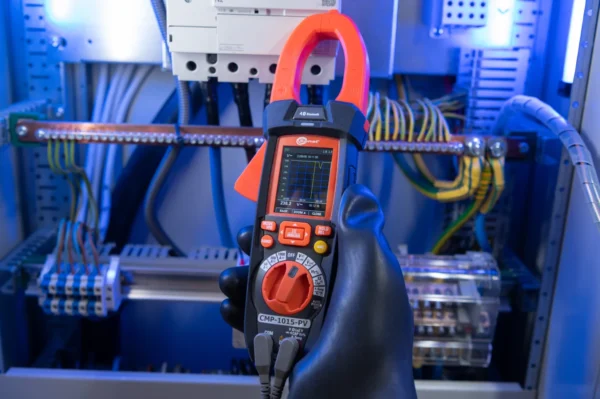

Modern clamp

The innovative shape means easier access in hard to reach and tight places, as the basis for mounting special voltage adapters. The clamp edging is equipped with a contactless voltage indicator sensor.

Visibility in any conditions

Working in full sun is not difficult thanks to the high-brightness display. Darkness in the workplace is not a problem thanks to the built-in flashlight.

Multifunctional

The device is versatile due to many measurement options. IIn addition to the basic measurements, the instrument has a recorder with graphs, as well as special functions, including inrush current (INRUSH), AC and DC voltage components, low-impedance voltage measurement (Low Z).

Robust design

With the help of the latest technologies, a compact instrument for working in the toughest conditions has been created. The rubber housing protects the device against accidental damage.

Wireless communication

Transfer measurement data via Bluetooth, in “live” mode and from internal memory to the Sonel Multimeter Mobile application. This allows to record and store the results and include additional description or photos. You can also share measurement data as an e-mail attachment.



  • Measurement functions Range Resolution Accuracy
    AC current up to 1000 A from 0.01 A ±(2.5% m.v. + 5 digits)
    DC current up to 1000 A from 0.01 A ±(2.0% m.v. + 8 digits)
    AC voltage up to 1000 V from 0.001 mV from ±(1.2% m.v. + 5 digits)
    DC voltage up to 1500 V from 0.1 mV from ±(0.5% m.v. + 5 digits)
    AC+DC voltage up to 1000 V from 0.001 V from ±(1.5% m.v. + 20 digits)
    Low Z (AC / DC voltage) up to 1000 V from 0.001 V ±(3.0% m.v. + 40 digits)
    Low Z AC+DC< /b> up to 1000 V from 0.001 V ±(3.5% m.v. + 40 digits)
    Resistance up to 60.00 MΩ from 0.1 Ω from ±(0.8% m.v. + 5 digits)
    Frequency up to 10.00 MHz from 0.01 Hz ±(0.2% m.v. + 5 digits)
    Capacitance up to 100.0 mF from 0.01 nF from ±(3.0% m.v. + 8 digits)
    Duty cycle (%) 10.0…90.0% 0.1% ±(1.2% m.v. + 8 digits)
    Temperature measurement -40.0…+1000ºC
    -40.0…+1832ºF
    0.1ºC
    0.1ºF
    ±(1.5% m.v. + 3ºC)
    ±(1.0% m.v. + 5.4ºF)
    Continuity / Diode test ✓ / ✓

    m.v. – measured value



    Basic features:

    • HOLD
    • Automatic range selection

    Advanced features:

    • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
    • High voltage DC measurement (HVDC)
    • Inrush current
    • Non-contact voltage detector
    • MIN / MAX
    • PEAK HOLD
    • Relative measurement REL
    • TRMS measurement
    • Memory
      • internal
        • measurements: 128 results
        • recorder: 16 recordings, 100 000 points, sampling frequency: from 1 Hz
      • external
        • in mobile application
    • Bluetooth communication

    Other features​​​​​​​:

    • Auto-off
    • Battery indication
    • Integrated flashlight
    • Beeper

    Display:

    • Type: graphical LCD
    • Display backlight

Data sheet

Photovoltaics under close control

The CMP-1015-PV device is dedicated to measure DC current and voltage in photovoltaic installations with voltages of 1500 V. The meter also provides precise measurements downstream of frequency converters thanks to the VFD function.

Modern clamp

The innovative shape means easier access in hard to reach and tight places, as the basis for mounting special voltage adapters. The clamp edging is equipped with a contactless voltage indicator sensor.

Visibility in any conditions

Working in full sun is not difficult thanks to the high-brightness display. Darkness in the workplace is not a problem thanks to the built-in flashlight.

Multifunctional

The device is versatile due to many measurement options. IIn addition to the basic measurements, the instrument has a recorder with graphs, as well as special functions, including inrush current (INRUSH), AC and DC voltage components, low-impedance voltage measurement (Low Z).

Robust design

With the help of the latest technologies, a compact instrument for working in the toughest conditions has been created. The rubber housing protects the device against accidental damage.

Wireless communication

Transfer measurement data via Bluetooth, in “live” mode and from internal memory to the Sonel Multimeter Mobile application. This allows to record and store the results and include additional description or photos. You can also share measurement data as an e-mail attachment.



  • Measurement functions Range Resolution Accuracy
    AC current up to 1000 A from 0.01 A ±(2.5% m.v. + 5 digits)
    DC current up to 1000 A from 0.01 A ±(2.0% m.v. + 8 digits)
    AC voltage up to 1000 V from 0.001 mV from ±(1.2% m.v. + 5 digits)
    DC voltage up to 1500 V from 0.1 mV from ±(0.5% m.v. + 5 digits)
    AC+DC voltage up to 1000 V from 0.001 V from ±(1.5% m.v. + 20 digits)
    Low Z (AC / DC voltage) up to 1000 V from 0.001 V ±(3.0% m.v. + 40 digits)
    Low Z AC+DC< /b> up to 1000 V from 0.001 V ±(3.5% m.v. + 40 digits)
    Resistance up to 60.00 MΩ from 0.1 Ω from ±(0.8% m.v. + 5 digits)
    Frequency up to 10.00 MHz from 0.01 Hz ±(0.2% m.v. + 5 digits)
    Capacitance up to 100.0 mF from 0.01 nF from ±(3.0% m.v. + 8 digits)
    Duty cycle (%) 10.0…90.0% 0.1% ±(1.2% m.v. + 8 digits)
    Temperature measurement -40.0…+1000ºC
    -40.0…+1832ºF
    0.1ºC
    0.1ºF
    ±(1.5% m.v. + 3ºC)
    ±(1.0% m.v. + 5.4ºF)
    Continuity / Diode test ✓ / ✓

    m.v. – measured value



    Basic features:

    • HOLD
    • Automatic range selection

    Advanced features:

    • Current and voltage measurements downstream the inverter, frequency converter or in the VFD system
    • High voltage DC measurement (HVDC)
    • Inrush current
    • Non-contact voltage detector
    • MIN / MAX
    • PEAK HOLD
    • Relative measurement REL
    • TRMS measurement
    • Memory
      • internal
        • measurements: 128 results
        • recorder: 16 recordings, 100 000 points, sampling frequency: from 1 Hz
      • external
        • in mobile application
    • Bluetooth communication

    Other features​​​​​​​:

    • Auto-off
    • Battery indication
    • Integrated flashlight
    • Beeper

    Display:

    • Type: graphical LCD
    • Display backlight

Data sheet
